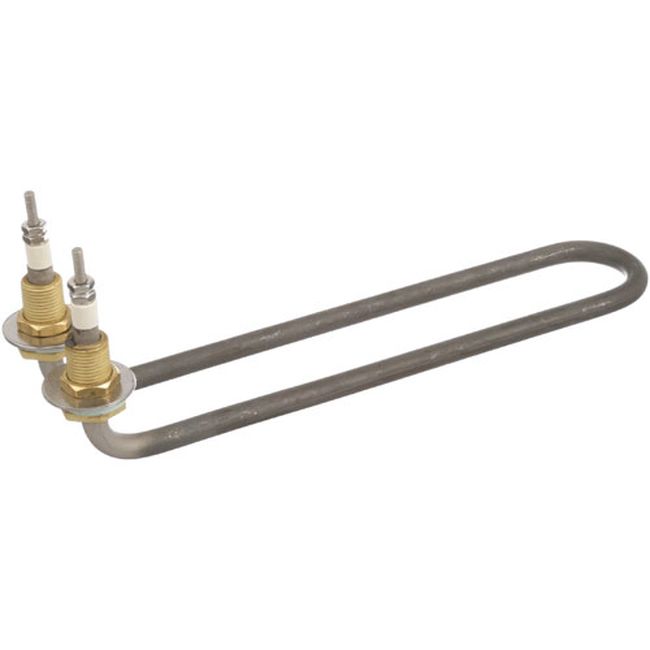

Cres Cor Cre0811214k Warmer Element 120v 1000w

Warmer element, 120v, 1000w, 10-1/4" long x 3-1/2", 5/8" bushings with washers, nuts, & seals cres cor model phu1874735, phu1874744 brass hex nut 5/8"-18 (2). brass bulkhead 5/8"18 x 1.190" od. (30.24mm)(2) flat washer, ni-plated, .662" id x 1.302" od. (2) brass washer/seal .625" id x .864" od. x 1.000" thick. (2) hex nut, #8-32, ni-plated (4) flat washer, ni-plated, #8 (6) ceramic .306" (7.79mm) od. x .196" (4.99mm) id x .376" (9.56mm) long. (2) terminal stud 8-32 s/s (2) dim a=93.01mm, b=32.25mm, c=257.17mm

Fits Model Cres Cor: 120, 120CR1836, 120PH1836D, 121CR1816, 121PH, 121PH1818D, 121PHUA11D, 126CR1836, 126PH, 126PHC, H135WSUA11, H135WUA11, H137PWSUA12C, H137PWSUA6C, H137PWSUA9C, H137SUA12D, H137SUA12D2K, H137SUA5D, H137SUA6D, H137SUA9D, H137UA12D2K, H137UA9D, H1381834D, H1381834D2K, H138PWS1834C, H138S1816D, H138S1834D, H138S1834D2K, H138S185D

Replaces Part Number CRES COR: 0811 214 K, 0811-214-K, 0811214K, 811-214, 811-214-K, 811-214K, CRE0811-214-K, CRE811-214, CRE811-214-K, CRE811-214K
