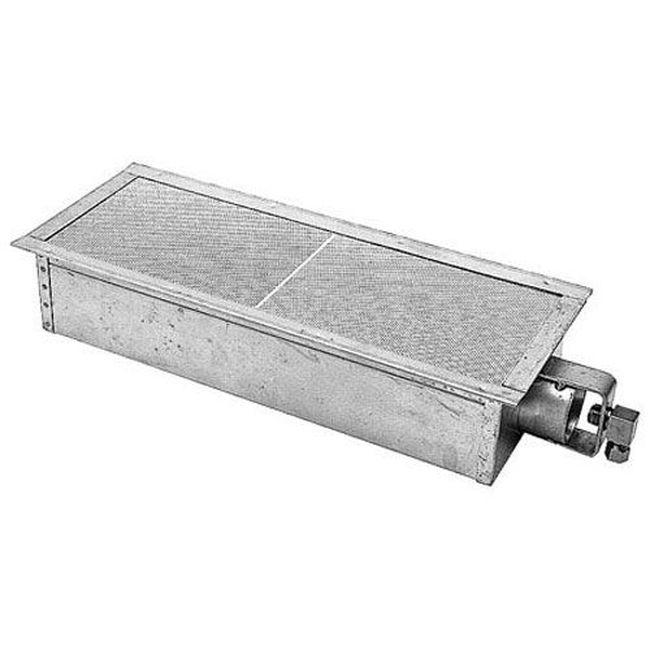

Rankin Delux RKDRDCM-08 Infrared Burner

Infrared burner, [ orifice - #46 w/ thd bracket ] 185,000 btu top of box 16-3/4" x 6-3/4" ceramic burn area 15-1/4" x 5-1/4", box only 15-5/8" x 5-3/4" garland rankin-delux broiler rdcm 15, rdgm cheesemelter. vulcan broiler icm us range cheesemelter ircma 24,48,72,96,120,144 this burner can substitute for jade burner # 26-3690 but is not exact.

Fits Model Garland: IRCMA-24, IRCMA-48, IRCMA-60, IRCMA-72

Fits Model Rankin Delux: ORHP-448-C, RDCM, RDCM-36-C, RDCM-48-C

Fits Model Royal Range: RCM-24, RCM-48, RCM-60, RIB-24, RIB-36, RIB-48, RIB-60, RSB-24, RSB-48

Fits Model Vulcan Hart: ICM SERIES, ICM-48, ICM-60, ICM-72, ICM24, ICM36, ICM48, ICM60, ICM72

Replaces Part Number GARLAND: 222105-1, 222105-2

Replaces Part Number HOBART: 00-844516-00016, 844516-00016, 844516-16

Replaces Part Number RANDELL: RDCM-08

Replaces Part Number RANKIN DELUX: RDCM-08

Replaces Part Number ROYAL RANGE: 1604

Replaces Part Number VULCAN HART: 00-844516-00016, 844516-00016, 844516-16, VH844516-16
