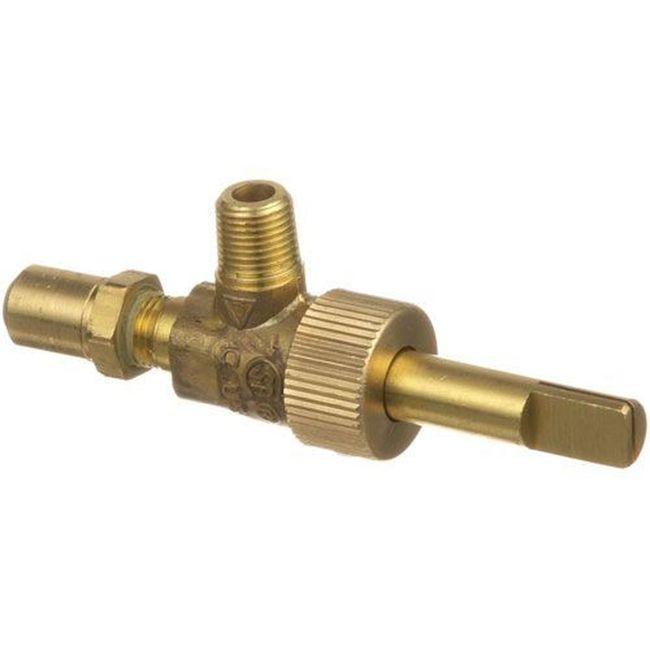

Top Burner Valve for Bakers Pride Part Number R3032A

Burner valve [ 1/8" mpt x 3/8"-27, #42 orifice adjustable][ rotation off/on] [stem position down] [stem size .240"] [ctr inlet to end of stem 2-1/8"] [ 90 degree angle], [ comes with orifice #42 ] cntr of stem to bottom of inlet 7/8", cecilware broiler bc, ccb us range broiler bbq- 48,60,72, c-hds-a, rba grill/griddle performer ii, performer pf, rgta hotplate rhpa solid state pocket gas detector # 85-1101 teflon thread sealing tape, # 85-1109 (1/2" x 520") teflon sealing "pink" h/d tape # 85-1130 (1/2" x 260") "gripp" heavt duty thread sealer 1/2 pint, # 85-1101 ptfe heavy duty thread sealer 1/4 pint # 85-1136

Fits Model Anets: BR-34-3, GTC

Fits Model Bakers Pride: C-24GS, C-24R, C-30GS, C-30R, C-36GS, C-36R, C-48GS, C-48R, C-60GS, C-60R, C-72GS, C-72R, C-84GS, C-84R, CH, CH SERIES, CH-10, CH-12, CH-14, CH-6, CH-8, F-24GS, F-24R, F-30GS, F-30R, F-36GS, F-36R, F-48GS, F-48R, F-60GS, F-60R, F-72GS, F-72R, F-84GS, F-84R, L-24GS, L-24R, L-36GS, L-36R, L-48GS, L-48R, L-60GS, L-60R, L-72GS, L-72R, L-84GS, L-84R, SGBR, SGBR SERIES, XOB-212, XX, XX SERIES, XX-10, XX-12, XX-4, XX-6, XX-8

Fits Model Cecilware: AG 120, AG 120B, BC 1812, BC 1824, BC 1836, BG 12, BG 24, BG 36, BG 48, CCB 1812, CCB 1824, CCB 1836

Fits Model Garland: G24-15H, G286, M42R, M42RC, M42S, M42T, M43RC, M43S, M43T, M44R, M44RC, M44S, M44T, M45R, M45RC, M45S, M45T, M4S, M4T, M54R, M54RC, M54S, M54T, M5S, M5T, MS42-6R, MS42-6RC, MS42-6RCE, MS42-6RE, MS42-6S, MS42-6SE, MS42-6T, MS42-6TE, MS42R, MS42RCE, MS42RE, MS42SE, MS42TE, MS43R, MS43RC, MS43RCE, MS43RE, MS43S, MS43SE, MS43T, MS43TE, MS44R, MS44RC, MS44RCE, MS44RE, MS44S, MS44SE, MS44T, MS44TE, MS4S, MS4SE, MS4T, MS4TE, MS54R, MS54RC, MS54RCE, MS54RE, MS54S, MS54SE, MS54T, MS54TE

Fits Model Rankin Delux: CHB-30, TB-8 SERIES, TB-825, TB-830, TB-836

Fits Model Vulcan Hart: 100L-77R, 77 SERIES, SG77 SERIES

Replaces Part Number ANETS: ANEP8900-27, P8900-27

Replaces Part Number BAKERS PRIDE: BKPR3032A, R3032A

Replaces Part Number CECILWARE: F000A, F000F, F196A

Replaces Part Number CHG: CHGG40-6452, G40-6452

Replaces Part Number GARLAND: 1046296, 1085900, 1087696, 1087697, 4417-57, 9005597, 9005599, G4447-57F, GL1046296, GL1085900, GL1087696, GL1087697, GL4417-57, GL9005597, GL9005599, GLG4447-57F

Replaces Part Number GRINDMASTER: F000A, F000F, F196A

Replaces Part Number JADE RANGE: 440-110-000

Replaces Part Number RANKIN DELUX: RANTB11, TB11

Replaces Part Number VULCAN HART: 104076, 104076ALL, 107076ALN, VH104076, VH104076ALL, VH107076ALN
