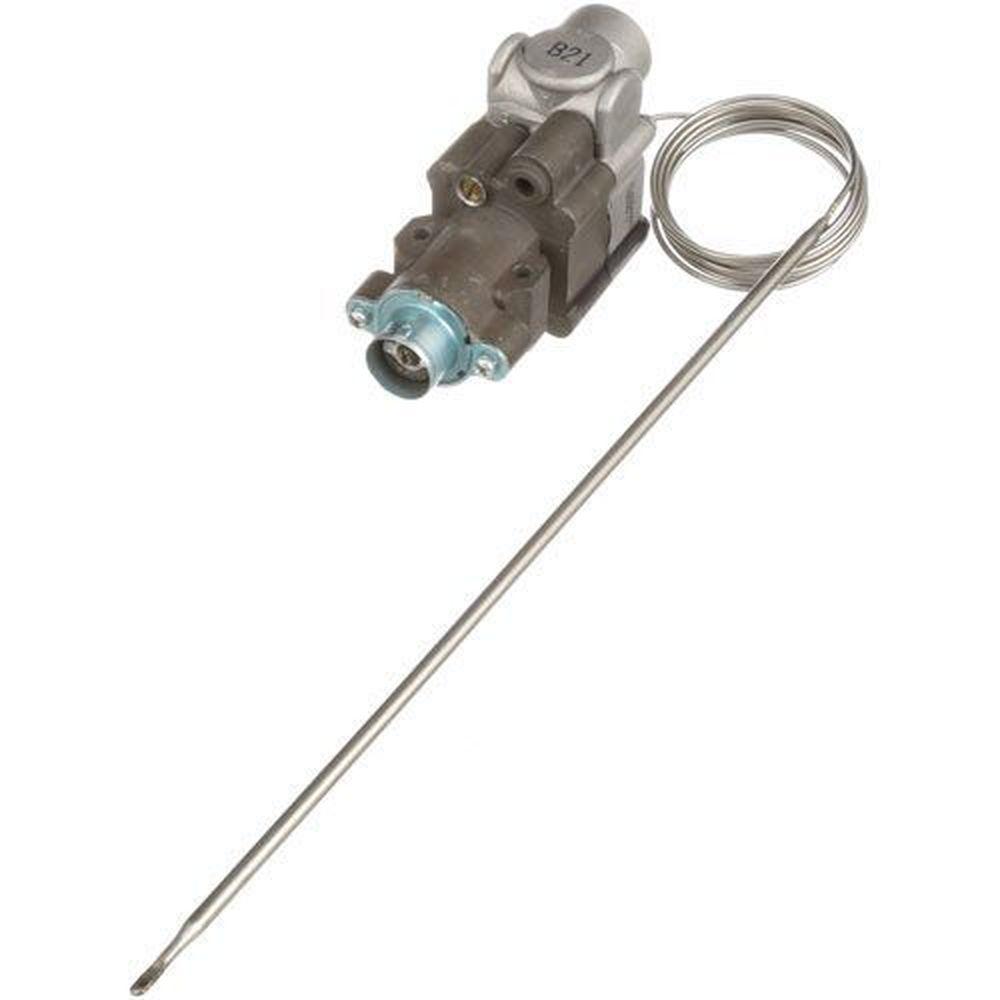

Mavrik BJWA Type Equivalent Thermostat for Garland Part Number 1086700

Thermostat for Garland Part

Viewed from rear: see "bj outlet positions" w/ by-pass adj at top & gas inlet down bjwa t~ stat, outlet 3/8" for 7/16 cct "c" rear, if required order #262183 adapter 3/8"npt to 7/16"cct rotation 0 degrees, temp 250-550, cap 48", bulb 3/16 x 11 3/16, (dial not included). gen use dial # 22-1029 off-low-250-500 [ 2" dia ] [ off-low-250-500] [mount .240] [position 4 way], w/ adapter # 26-1197 for bj kits see # 46-1053 or # 46-1054 garland oven px624bg (standard oven). series: g30a (prior to 2/82). us range oven model: s102626, series: px, sunfire s series gen use dial # 22-1029 off-low-250-500 [ 2" dia ] [ off-low-250-500] [mount .240" ] [position 4 way], w/ adapter # 26-1197 for bj kits see # 46-1053 or # 46-1054 solid state pocket gas detector # 85-1101 teflon thread sealing tape # 85-1109 "gripp" heavt duty thread sealer 1/2 pint # 85-1101 ptfe heavy duty thread sealer 1/4 pint # 85-1136

Fits Model Garland: G286, S-10, S-10-26, S-10-2626, S-10-2626CP, S-10-26CP, S-10-26CP26CP, S-4, S-4-20, S-6, S-6-24BG-26, S-6-24BG-2626, S-6-24BG-2626CP, S-6-24BG-26CP, S-6-24BG-26CP26CP, S-6-26, S-6-26CP, SX-10-26, SX-10-2626, SX-1HT-4, SX-1HT-4-26, SX-24G-2, SX-24G-2-26, SX-24G-6-26, SX-24G-6-2626, SX-4, SX-4-20, SX-6, SX-6-24BG-26, SX-6-24BG-2626, SX-6-26

Replaces Part Number GARLAND: 1086700, 1087800, 1087801, 1087895
