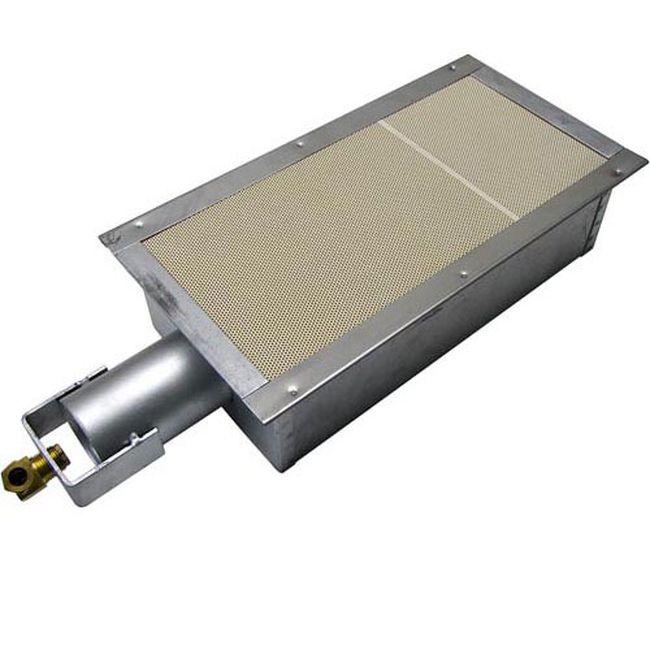

Royal Range ROY1603 Infrared Broiler Burner, 12 3/4 in x 6 3/4 in

Infra-red broiler burner top of box, 12-3/4" x 7" od, weight 5.6 lbs. ceramic area 11-1/4" x 5-1/8" bottom of box 11-11/16" x 5-3/4" x 3-3/8"h venturi 2.122" dia od x 2-5/16"l, w/ bracket 4-3/16"l orifice #48 x 3/8" cct total length w/o orifice 16-1/2" american range broiler arcm cheesemelter, avb vertical broiler. ***verify the size of the burner the customer is ordering - american range has conflicting information on their ir burners. may need part number 263692***

Fits Model American Range: ARSB

Fits Model Royal Range: RSB-36

Replaces Part Number AMERICAN RANGE: 10477, A14015

Replaces Part Number ROYAL RANGE: 1603
